Temp Control ( 26.0°C – 40.0°C)

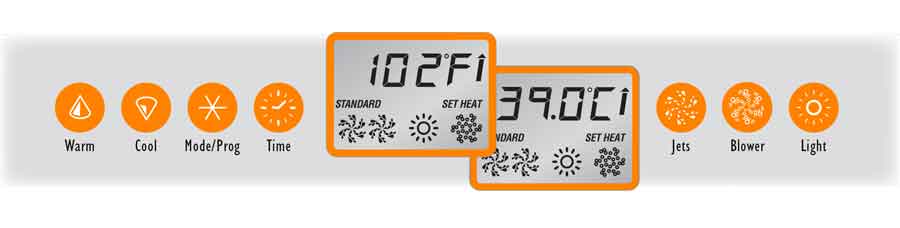

The last measured water temperature is constantly displayed. The water temperature displayed is current only when the pump has been running for at least 2 minutes. To display the set temperature, press “Warm” or “Cool” once. To change the set temp, press a temp button again before the display stops flashing. After three seconds, the display will stop flashing and begin to display the current spa temperature.
Press “Jets 1” to turn pump 1 on or off, and to shift between low and high speeds (if equipped). The low-speed will turn off after 4 hours. High-speed will turn off after 15 minutes. Low-speed may run automatically at times, during which it cannot be deactivated from the panel, but high-speed may be operated.
Jets 2 / Blower
Press the corresponding button once to turn the device on or off. The device will turn off after 15 minutes. Pump 2 may be two-speed on some systems. If the panel has a button with 2 devices assigned to it, like Pump 2 and Pump 3, press the button repeatedly to step through the various combinations of On and Off for both devices.
Press “Light” to operate the spa light. Turns off after 4 hours.
Mode is changed by pressing “Warm” or “Cool,” then pressing “Mode/Prog” button. Standard Mode maintains set temperature and the STANDARD icon will be displayed. Economy Mode heats the spa to the set temperature only during filter cycles. will display when water temp is not current, and will alternate with water temp when the pump is running. The ECONOMY icon will be displayed. Sleep Mode heats the spa to within 20°F/10°C of the set temperature only during filter cycles. will display when water temp is not current, and will alternate with current water temp when the pump is running.
Preset Filter Cycles
The first preset filter cycle starts at 8:00 AM and ends at 10:00 AM. The second preset filter cycle starts at 8:00 PM and ends at 10:00 PM. For non-circ systems, low-speed pump 1 and the ozone generator (if installed) run during filtration. For 24 hour circulation systems, the circ pump and the ozone generator (if installed) run 24 hours. In hot environments, the circ pump may turn off for 30 minute periods, except during filter cycles.
For non-24 hour circulation systems, the circ pump and ozone generator (if installed) run during filtration (and may also run automatically at other times). At the beginning of each filter cycle all other equipment will run briefly to purge the plumbing
Optional Filter Cycle Programming
You are not required to change the filter cycles, but if you wish to, press “Time,” “Mode/Prog,” “Mode/Prog” within 3 seconds. SET START FILTER 1 (AM) will appear. Press “Warm” or “Cool” to reset the filter start time. Press “Mode/Prog” to see SET STOP FILTER 1 and adjust the time with “Warm” or “Cool” as done above. Press “Mode/Prog” to see SET START FILTER 2 (PM) and proceed as above. Press “Mode/Prog” to see SET STOP FILTER 2 and proceed as above. Press “Mode/Prog” to confirm.
Locking the Panel
Press “Time,” “Blower,” and “Warm” within 3 seconds. The Panel is now locked. To unlock the panel, press the “Time,” “Blower,” and “Cool” within 2 seconds.
Locking the Temperature
Press “Warm,” “Time,” “Blower,” and “Warm” within 3 seconds. The “Warm” and “Cool” buttons are now disabled. To unlock the temperature, press “Time,” “Blower,” and “Cool” within 2 seconds. Note: On some systems, “Jets 1,” instead of “Blower,” is used in Lock/ Unlock sequences.
